Harness Re Work Page

Top Right - Fuse box with Bulkhead connection
        This configuration is wired like O.E. wiring diagrams

Bottom Right - Reworked Harness (This harness wrapped in O.E. fabric tape)
        This setup has 3 simple connectors between chassis and engine for ease of install

Bottom Center - Spare relay / fuse kit
        1 each of fuse and relay used in the fuse box build as backup (2 relays and 4 fuses)

Top Left harness - Fuel harness - it is customized to the length specified  (This harness wrapped in O.E. fabric tape)
        Connector to Fuel Pressure Sensor connector
        Connector to E85 Sensor connector
        Connector to Fuel Pump Control Module connector
        Fuel Pump Control Module connector to Fuel Pump connector

Bottom Left Harness- Interior harness - it is customized to the length specified (This harness wrapped in O.E. fabric tape)
        Connector to OBD II port
        OBD II port  power and ground wire lengths
        Connector to Throttle Pedal
        Connector to TCC wire (usually as long as the throttle pedal wire length)

2 x Paper templates are supplied to cut out the holes to create  your own custom panel

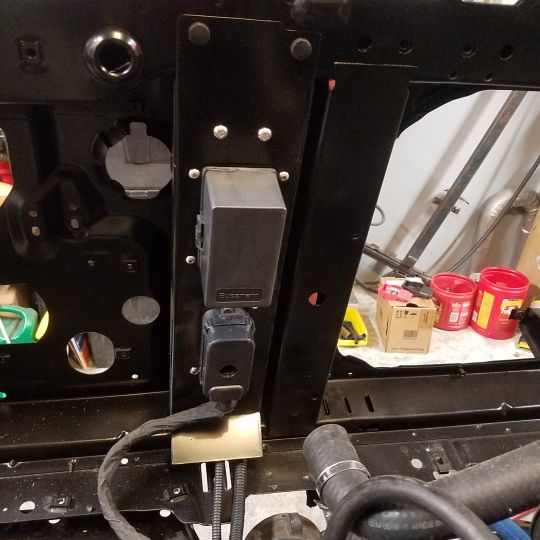

        Allows you to precisely cut out the holes needed to mount the fuse box, connector and power buss stud (example shown here)
